TMF产品型号

设备特点：	Equipment Features:
长寿命的管式膜可连续去除水中悬浮物与沉淀物紧凑滑架式的安装完整的设计包含内部清洗系统自动清洗（随洗）背脉冲装置可使系统达到最大通量自动，无故障操作提供随选与辅助工艺模块 PLC自动控制	Long-life tubular membrane Suspended solids removal in the water High solid handing capacity Rack slide installation Complete design Inner cleaning system Self-cleaning(on demand) High flux Automatic, trouble-free operation Provide optional and assistant technics modules Automatic PLC control

优势：	Advantages:
可以完全去除颗粒物质	Can remove particulate matter
对膜的运行有严格的保证与承诺	Strict commitment for membrane's operation
膜处理后的水，水质良好，完全不需要投加聚合物	Membrane treated water, goodquality, no need to increase polymer
完整的设计	Complete design
较传统的工艺产出的污泥量少	Less sludge produced than the traditional process
该设备可与用户原有的设备良好的结合使用	The device can be combined with original equipment customers
设备模块可以按照用户的需要添加拓展	Equipment modules can be added according to user's needs

典型应用:	Typical Applications:
金属表面处理液中去除重金属	Heavy metal removal in metal finishing fluids
RO预处理降SDI	Pretreatment for reverse osmosis for SDI reduction
结合石灰软化降低硬度	Reduction of hardness with lime softening
含氟（F）废水除氟	Fluorde removal
RO 浓水回收	Reclaim of RO reject
电镀槽液中高浓度固体物质的去除	High solids removal in electroplating solution baths
食品饮料处理	High solids removal from completion fluids
切削液中高浓度固体物质的去除	Food and beverage processing
硅晶体研磨切片工艺切削液回用	Cutting fluids recycling in silica grinding and slicing
从焚烧炉洗涤去除水中重金属	Heavy metal removal from incinerator scrubber water
吹式和侧流式冷却塔的过滤回收	Cooling tower blow-down recycling and/or side stream filtration
水处理系统中的盐水再利用	Brine recycling in water treatment systems
化学、微电子、造纸工业废水处理	Wastewater processing from the chemical, micro-electronics and pulp and paper industries

材料规格
支撑管	PVDF，HDPE
膜	PVDF
膜的名义孔径（μm）	0.05，0.1，0.5
支撑管的名义孔径（μm）	20，100
最大跨膜压差（PSI）	60（1英寸管），120（1/2英寸管）
外壳材质	PVC，CPVC

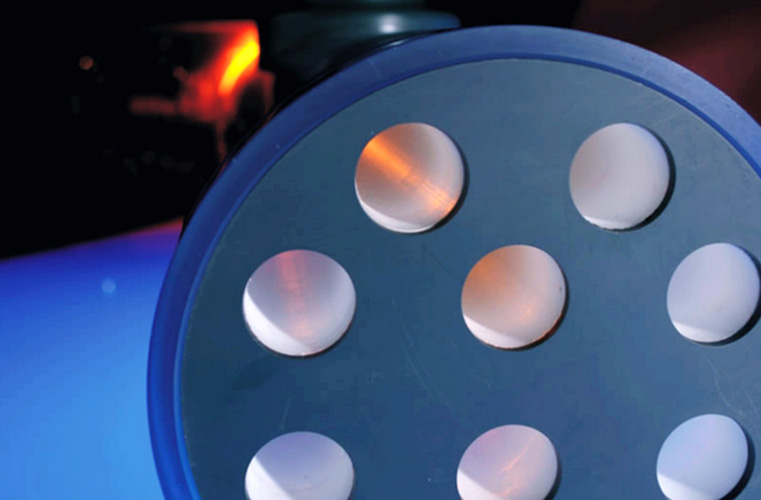

组件规格（含42根1/2英寸膜管）	组件长度——72英寸组件直径——8英寸两端连接——8英寸外U型凹槽透过水接口——3英寸外牙槽（用于管连接）取样口——1/4英寸NPT堵头
组件规格（含10或13根1英寸膜管）组件规格（含37根1/2英寸膜管）	组件长度——72英寸组件直径——6英寸两端连接——6英寸外U型凹槽透过水接口——3英寸外牙槽（用于管连接）取样口——1/4英寸NPT堵头
组件规格（含4或5根1英寸膜管）	组件长度——72英寸组件直径——4英寸两端连接——4英寸外U型凹槽透过水接口——1.5英寸外牙槽（用于管连接）取样口——1/4英寸NPT堵头
组件规格（含1根1英寸膜管）	组件长度——72英寸组件直径——2.5英寸两端连接——1英寸螺口透过水接口——1英寸螺口取样口——1/4英寸NPT堵头

MATERIAL SPECIFICATIOMS
Substrate tube	Polyvinyidene Fluoride High Density Polyethylene
Membrane	Polyvinylidene Fluoride
Nominal Membrane Pore Size(μm)	0.05,0.1,0.5
Nominal Sinter Tube Pore Size(μm)	20,100
Maximum Differential Pressure (PSI)	60(1 inch tubes),120(1/2inch tubes)
Housing Materials	PVC,CPVC
Housing Connections (42×1/2inch tube)	Length -72 inches Diameter -8 inches End Connection -8inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (10 or 13×1 inch tube)	Length -72 inches Diameter -6 inches End Connections -6 inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (4 or 5×1 inch tube)	Length -72 inches Diameter -4 inches End Connections -4 inch OD Victaulic groove Permeate Ports -11/2 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (1×1 inch tube)	Length -72 inches Diameter -2.5 inches End Connections -1 inch threaded Permeate Ports -1 inch threaded Sample Port -1/4 inch NPT plug

市场领域 Application Fields	具体应用 Typical Application
金属电镀 Metal Electroplating	去除重金属离子。经处理后离子浓度低于0.1ppm Heavy metal removal in metal finishing fluids, membrane filtrate less than 0.1ppm
印刷电路板 Printed Circuit Board	去除重金属离子。经处理后离子浓度低于0.1ppm Heavy metal removal in metal finishing fluids, membrane filtrate less than 0.1ppm
0 半导体 Semi-conductor	经处理后砷化合物浓度低于0.1ppm Arsenic compounds of filtrate less than 0.1ppm 经处理后氟化合物浓度低于5ppm Fluoride compounds of filtrate less than 0.5ppm 减少硅的流失 Reduce the loss of silicon 去离子 Deionized 从铅到锡的电镀废水中回收重金属 Recycle heavy metal from electroplating wastewater of lead and tin.
回灌地下水 Underground Water Infusion	去除重金属离子。经处理后离子浓度低于0.1ppm Remove heavy materials, filtrate less than 0.1ppm
电池制造 Battery Making	去除污水中的铅与镉 Lead and cadmium removal
汽车制造 Car Making	去除磷酸盐处理工程中含有的锌与磷酸盐 Remove phosphate and zinc in the process of phosphate treatment.
工业一般用途 General Use of Industrial	去除焚烧清洗水中的重金属物质 Incinerator, scrubber water treatment. 用于废水回用中在反渗透前的预处理 RO pretreatment of wastewater recycling 在循环水中用于软化水 Softener water in recycling water 整体的重金属去除率达到0.1ppm Heavy metal removal, filtrate less than 0.1ppm 在沙滤工艺后代替澄清池 Replace the clarifiers after sand filters.

MATERIAL SPECIFICATIOMS j
Substrate tube	Polyvinyidene Fluoride High Density Polyethylene
Membrane	Polyvinylidene Fluoride
Nominal Membrane Pore Size(μm)	0.05,0.1,0.5
Nominal Sinter Tube Pore Size(μm)	20,100
Maximum Differential Pressure (PSI)	60(1 inch tubes),120(1/2inch tubes)
Housing Materials	PVC,CPVC
Housing Connections (42×1/2inch tube)	Length -72 inches Diameter -8 inches End Connection -8inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (10 or 13×1 inch tube)	Length -72 inches Diameter -6 inches End Connections -6 inch OD Victaulic groove Permeate Ports -3 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (4 or 5×1 inch tube)	Length -72 inches Diameter -4 inches End Connections -4 inch OD Victaulic groove Permeate Ports -11/2 inch male socket (for tubing connection) Sample Port -1/4 inch NPT plug
Housing Connections (1×1 inch tube)	Length -72 inches Diameter -2.5 inches End Connections -1 inch threaded Permeate Ports -1 inch threaded Sample Port -1/4 inch NPT plug

金属污染物 Metal Pollutants	经TMF系统处理后，排放可达标（毫克/升） Dischanrrge Reaches Standard After Treatment of TMF System(mg/L)
铜（Cu）	0.005
镍（Ni）	0.05
铬（Cr）	0.05
铅（Pb）	0.05
镉（Cd）	0.005
锌（Zn）	0.05
银（Ag）	0.01
钼（Mo）	0.1
砷（As）	0.005
氰（Cn）	0.01
金（Au）	0.1
水银（Hg）	0.005
铑（Rh）	0.1
锡（Sn）	0.1
铀（Pt）	0.01
镓（Ga）	0.5
锗（Ge）	0.5
铁（Fe）	0.02
锰（Mn）	0.02
以上都是实际数据。如果采用不同的化学药剂和污水处理方式，这些数据可能会有差异。
